Commercial Testing Services ( High Voltage Laboratory ), KFUEIT

PROF DR Amir Azam

The Department of Electrical and Biomedical Engineering at Khwaja Fareed University of Engineering & IT has established a state-of-the-art High Voltage (HV) Laboratory equipped with advanced testing facilities, providing a comprehensive range of testing services. Our laboratory offers a wide range of testing services, specializing in High Voltage insulation systems and equipment. Over the years, we have contributed to numerous research, development, and testing initiatives, playing a significant role in advancing transmission, distribution, high voltage engineering, and insulation failure technologies.

Our HV Laboratory is designed for the precise evaluation of materials and the detailed analysis of High Voltage phenomena. We provide essential insights into the condition of assets and conduct product testing before they enter the market. Supported by advanced technology and a skilled team, we offer comprehensive testing services that cater to both academic and industrial needs, ensuring high standards of accuracy and reliability

We emphasize delivering independent, third-party testing services. Our expert team, with extensive experience in diagnostics and advanced testing, ensures that clients receive trustworthy, reliable results. Our services support both research and development initiatives, as well as product testing employed in the electrical industry. With customer involvement, we work together to ensure robust evaluations, and we continue to refine High Voltage products for optimal performance.

Our services cover indoor, outdoor, mobile, and specialized environmental testing technologies, backed by in-depth evaluation expertise.

Why Us?



  • Testing for All Standards & Requirements
    • We adhere to industry standards like IEC, IEEE, and ASTM to meet your testing needs.
  • One Stop Shop
    • Our facility provides an end-to-end assessment of components, offering both field and lab support prior to installation.
  • Wide Variety of Product Testing
    • We assess transmission line hardware, insulators, power cables, and accessories, ensuring a clear understanding of component conditions and life expectancy.
  • Comprehensive Testing Capabilities
    • Our testing services include LI / SI voltage, partial discharge, wet/dry power frequency withstand, flashover, dissipation factor (tan δ), and contamination tests.

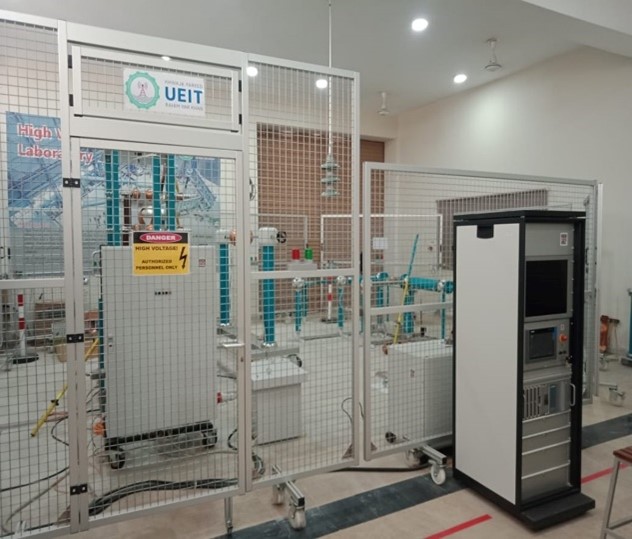

Our High Voltage Testing Facilities

We maintain comprehensive indoor and mobile outdoor high voltage testing services capable of performing tests to IEC, IEEE, ASTM and other national and international standards.

Our engineers are actively involved with standards committees, the evaluation of new materials and their environmental impacts, and the development of advanced test methods. Our ongoing involvement and assistance in research mean we remain up to date with new products and technologies.

Features & Specifications

PROF DR Amir Azam

High Voltage Testing Capabilities

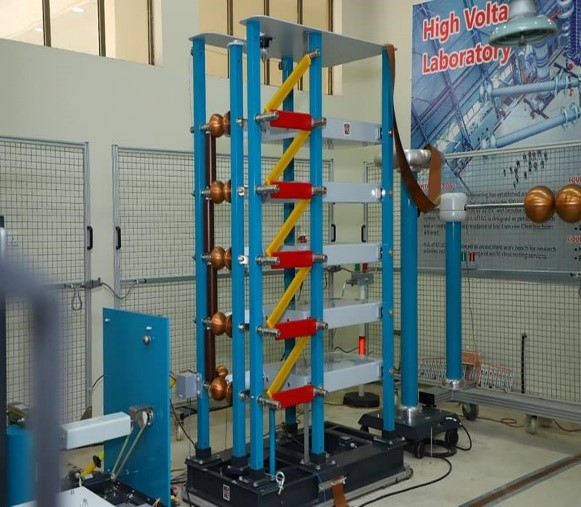

   Lightning impulse voltage tests up to 500 kV
   Switching surge tests up to 500 kV
   Power frequency tests up to 100 kV
   Partial Discharge (PD)
   Dissipation Factor (tan δ)
Examples of Typical Tests Conducted
   Lightning and switching impulse tests on power apparatus
   Impulse tests on transformers
   Partial discharge tests on internal insulation
   Visual corona tests on transmission and substation hardware
   Contamination testing of external insulation
   Design and type tests on polymeric, porcelain and glass insulators
   Tan δ (tan delta) and capacitance testing
   HV / MV / XLPE cable tests
   AC / DC resistance tests.
   On-Site grounding resistance testing
Engr. Dr. Abubakar Siddique
Director High Voltage Lab
